Recent industry cases have shown that some manufacturers experienced functional failure across entire PCBA batches due to a missing buzzer (SPK reference) during the SMT process. As a leading one-stop PCBA solutions provider, Fully Hong has conducted an in-depth investigation into such failures and implemented robust mistake-proofing systems that eliminate these issues at the source.

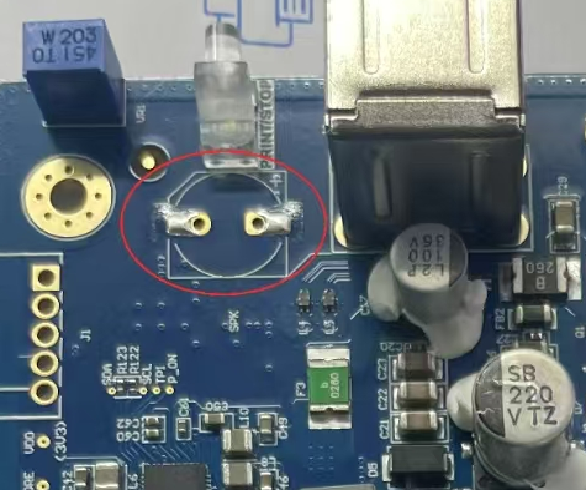

1. Root Cause: Why Was the Buzzer Not Mounted?

The Fully Hong engineering team reverse-engineered the failure and traced it to a series of breakdowns across three critical stages: design, production, and quality control.

✅ Key Findings:

• Design Deficiency:
  The PCB pad supported both SMT and DIP processes, but the preferred assembly method wasn’t clearly specified.

• Production Misinterpretation:
  The English BOM description differed from the Chinese production interface, causing SMT operators to incorrectly assume the component was to be surface-mounted.

• Quality Control Oversight:
  IPQC failed to verify the assembly route. The DIP workstation assumed the buzzer had already been mounted via SMT.

2. Fully Hong’s Preventive Mistake-Proofing Mechanisms

At Fully Hong, we’ve developed a multi-layered quality assurance framework that ensures zero component omission—especially for hybrid-process parts such as buzzers.

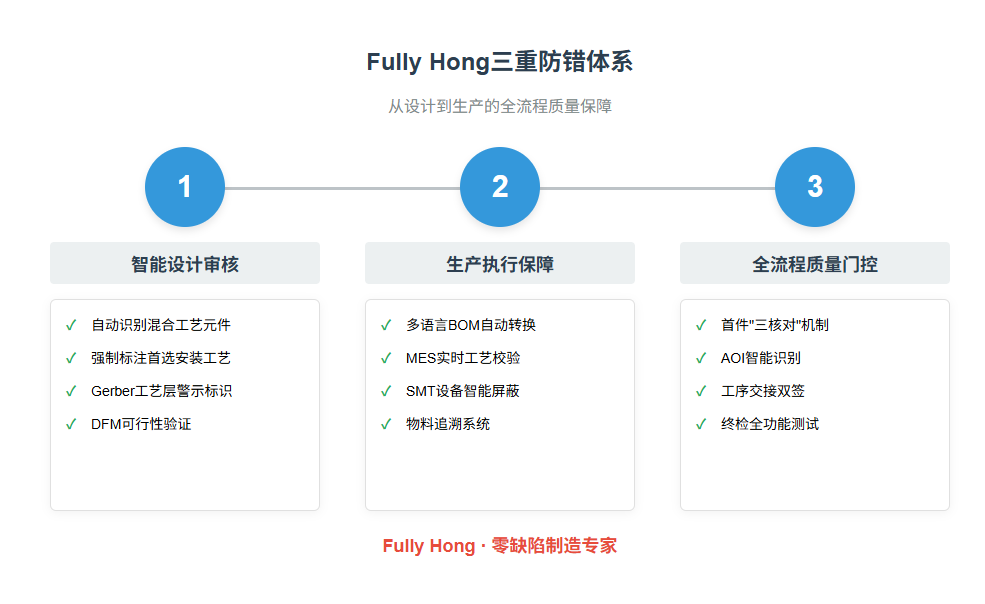

Triple-Layer Mistake-Proofing System

1. Smart Design Review System

• Automatically detects components that support both SMT and DIP

• Enforces mandatory designation of preferred process (e.g., "DIP ONLY")

• Gerber files include auto-generated process-layer warning markers

2. Production Execution Safeguards

• Multilingual BOM auto-conversion system (supports 12 languages)

• MES system validates process routing in real-time

• SMT machines automatically ignore non-SMT component positions

3. Full-Process Quality Gating

• First Article Inspection follows “Triple Verification” (BOM / Drawing / Physical Sample)

• AOI program trained to detect hybrid-process components

• Handover checkpoints require dual-signature confirmation between stations

3. Why Choose Fully Hong?

We have systematized our manufacturing processes to ensure consistent, high-reliability results for all your PCBA projects:

✅ 100% identification accuracy for hybrid-process components
✅<0.01% missing component rate — among the industry’s best
✅ 72-hour rapid response mechanism for issue resolution
